dust-collector

GENERAL OVERVIEW

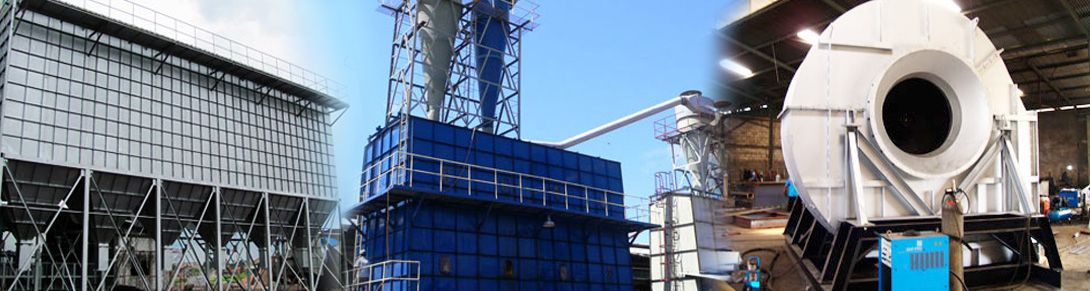

PT Mitra Adyaniaga has 24 years of experience in manufacturing Dust Collector nationwide. A dust collector is a machine used by gathering dust and other impurities from air or gas to increase the quality of air produced from industrial and commercial operations. A dust collector system designed to manage high-volume dust loads comprises of a ducting, centrifugal fan/ blower, separator (cyclone, multi-cyclone, bag-house-filter, wet scrubber, or electrostatic), and SILO.

GENERAL APPLICATIONS

Suction of polluted and dusty air
Pneumatic transport for dust, flour, granulate etc
Cooling for Machine or industrial process
Suction for fumes, flue gas, hazardous gas etc

CONSTRUCTION

Welded steel construction for casing and impeller
Impeller with curve vane type, statically and dynamically balanced
Vibration damping system
Driven by high class Electromotor
Finishing with scratch resistance paint
Stainless steel construction for special application

CBK-AE

Mitra Centrifugal Fan type CBK-AE produces high efficiency and is constructed for all kinds of industries.
The impeller is designed with straight vanes and an open wheel to assure low-cost maintenance without affecting performance.
Application for 160 mm Water Column to 450 mm Water Column with 4,000 m3/h to 100,000 m3/h.

CBKM-AE

Identical to CBKH-AE, this fan is used for heavy-duty applications, such as transporting flakes, abrasive dust, hard material, etc, and has high-strength and resistance material lining on the impeller vanes and casing. The lining plate can changed by loosing the bolts and replacing it with new ones.

CBR-AE

Mitra Centrifugal Fan type CBR-AE produces high efficiency and is constructed for all kinds of industries.
The impeller is designed with 14 to 18 blades to reach medium pressure from 150 mm Water Column to 600 mm Water Column with air volume from 5,000 m3/h to 200,000 m3/h. Water Column with 4,000 m3/h to 100,000 m3/h.

CBM-AE

Mitra Centrifugal Fan type CBM-AE application for low capacity from 1,000 m3/h to 12,500 m3/h with medium pressure from 100 mm water column to 250 mm water column. This fan provide exact capacity for precision use in industries.

SILO

Operation Field

Capacity: 80 m3, 165 m3, 220 m3, 350 m3

General Application

Storage for dust, flour, flakes, granulate, and other transported material
Low maintenance expenditure
Suitable with Cyclone and Bag Filter

Construction

Welded steel construction

Operating Field

Ambient temperature
